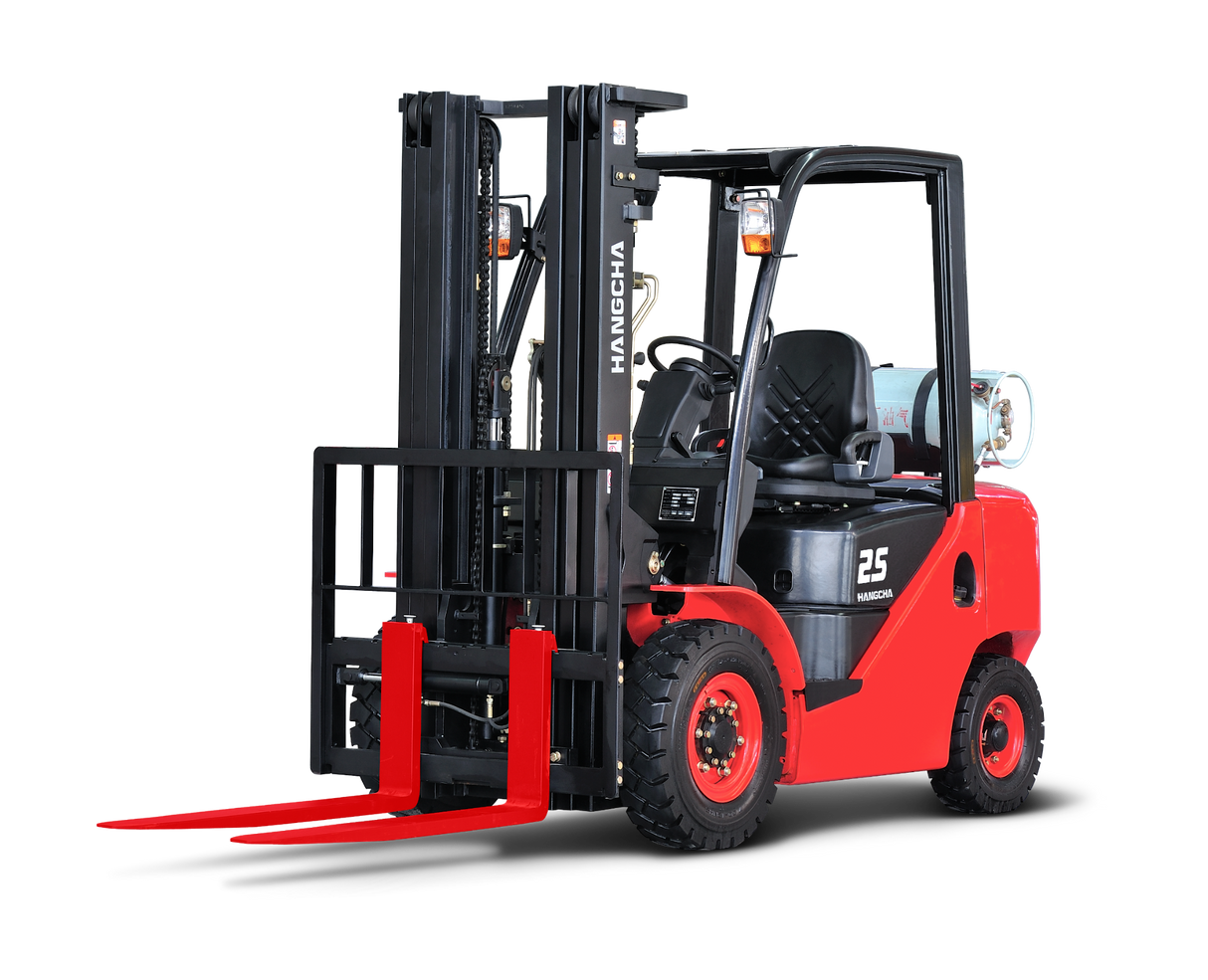

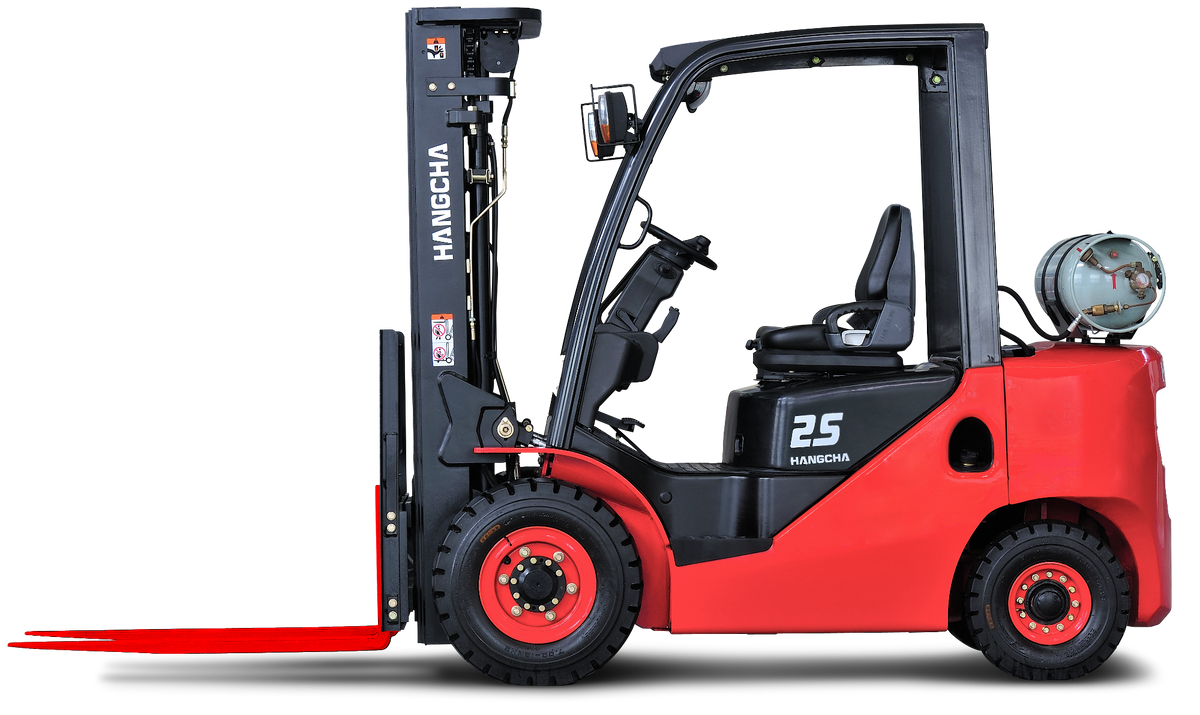

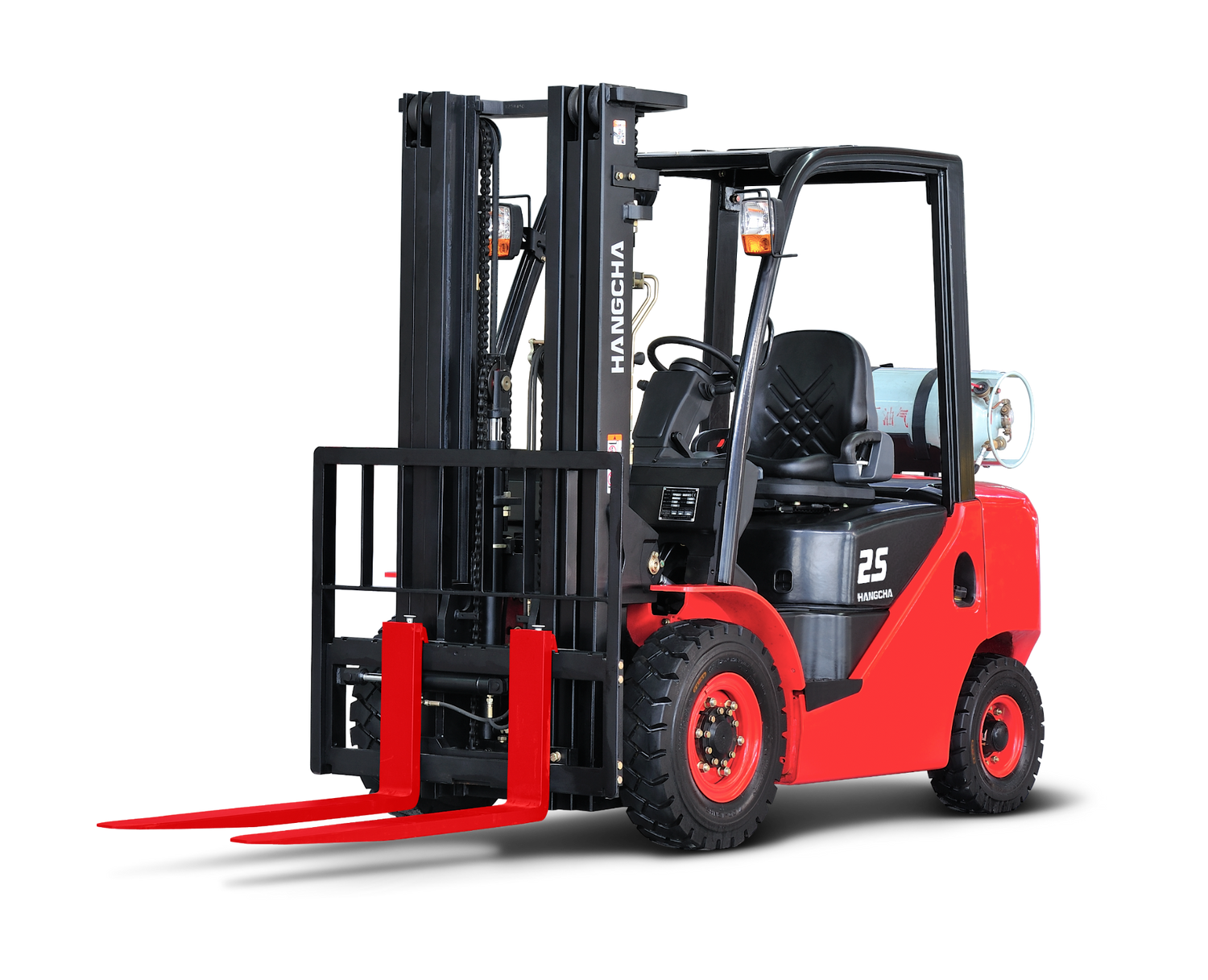

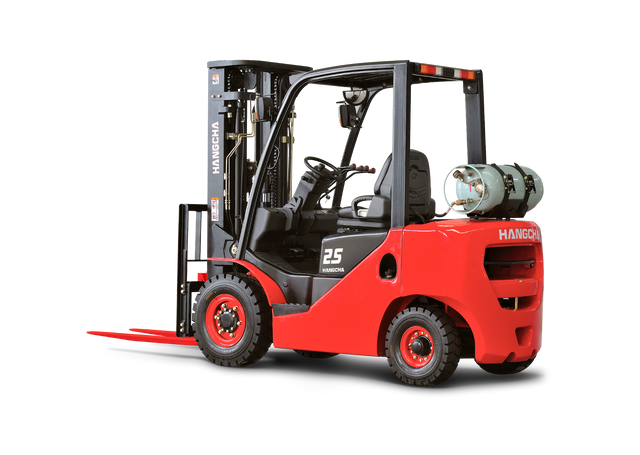

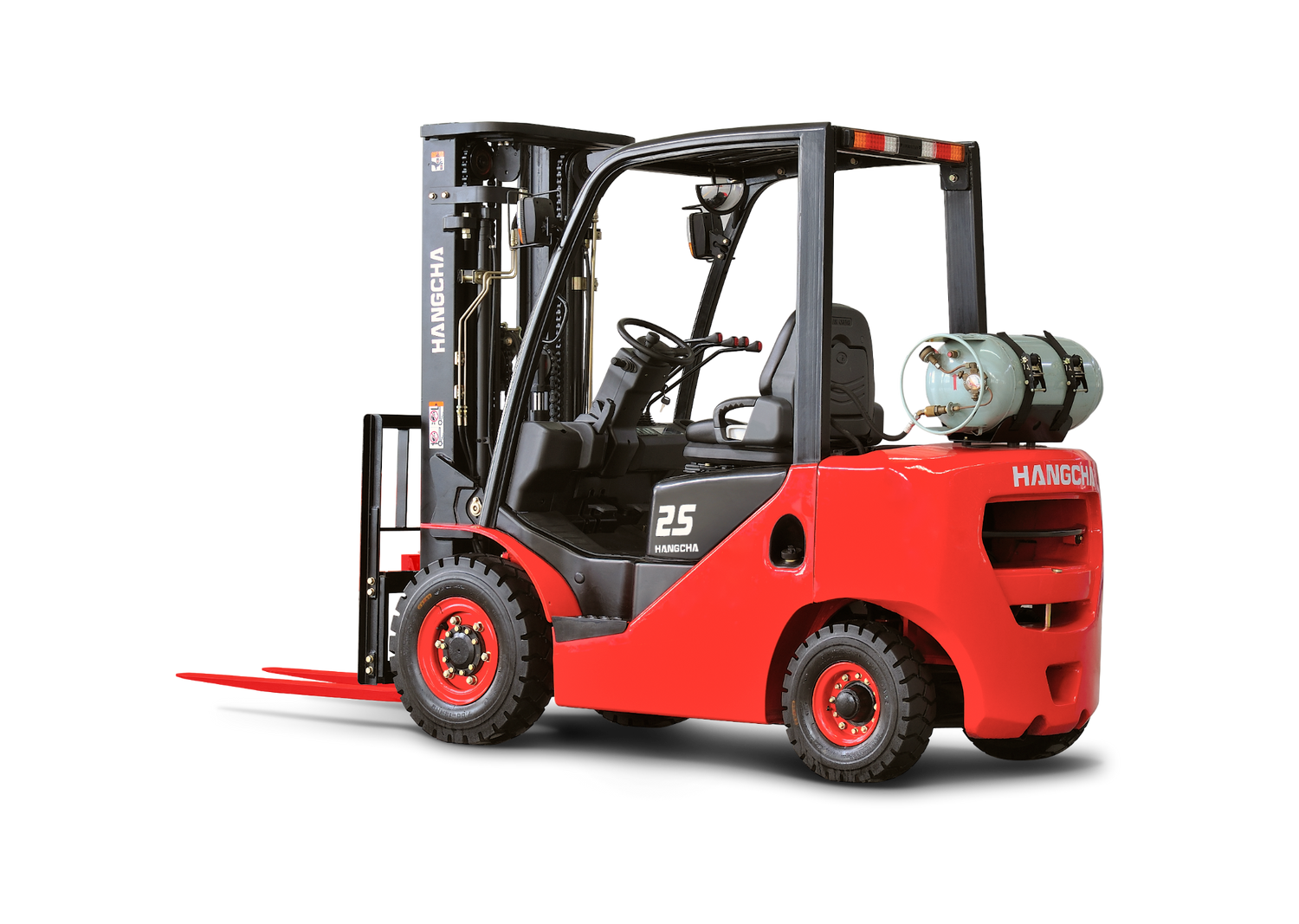

[Hangcha] CPQYD35 - 3.5 Tonne Counterbalance Forklift (LPG & Petrol)

Introducing the Hangcha CPQYD35-XRW22F 3.5T dual-fuel forklift — the ultimate blend of power, efficiency and versatility for Australian operations. With a 3.5 tonne lift capacity, seamless LPG-petrol switching, an advanced vibration-damping chassis, and a powerful Nissan K25 engine with high-pressure electronic fuel injection, it features Hangcha’s rugged X-Series design, full-floating powertrain, and stamped tangential-intake air cleaner to ensure durability and low maintenance.

5 Year Warranty

Features

  • Dual‑Fuel Flexibility: Seamless LPG/petrol switching for on‑the‑fly fuel choice and extended run times.
  • Eco‑Friendly Engines: The Nissan K25 meets global emission regulations for cleaner operation.
  • Advanced Vibration Control: Rubber dampers, compound engine mount and full‑floating powertrain isolate travel and drivetrain shocks for a smoother ride.
  • Soft‑Lift & Soft‑Land Systems: Front‑cylinder mast design and soft‑landing feature significantly reduce mast noise and shock.

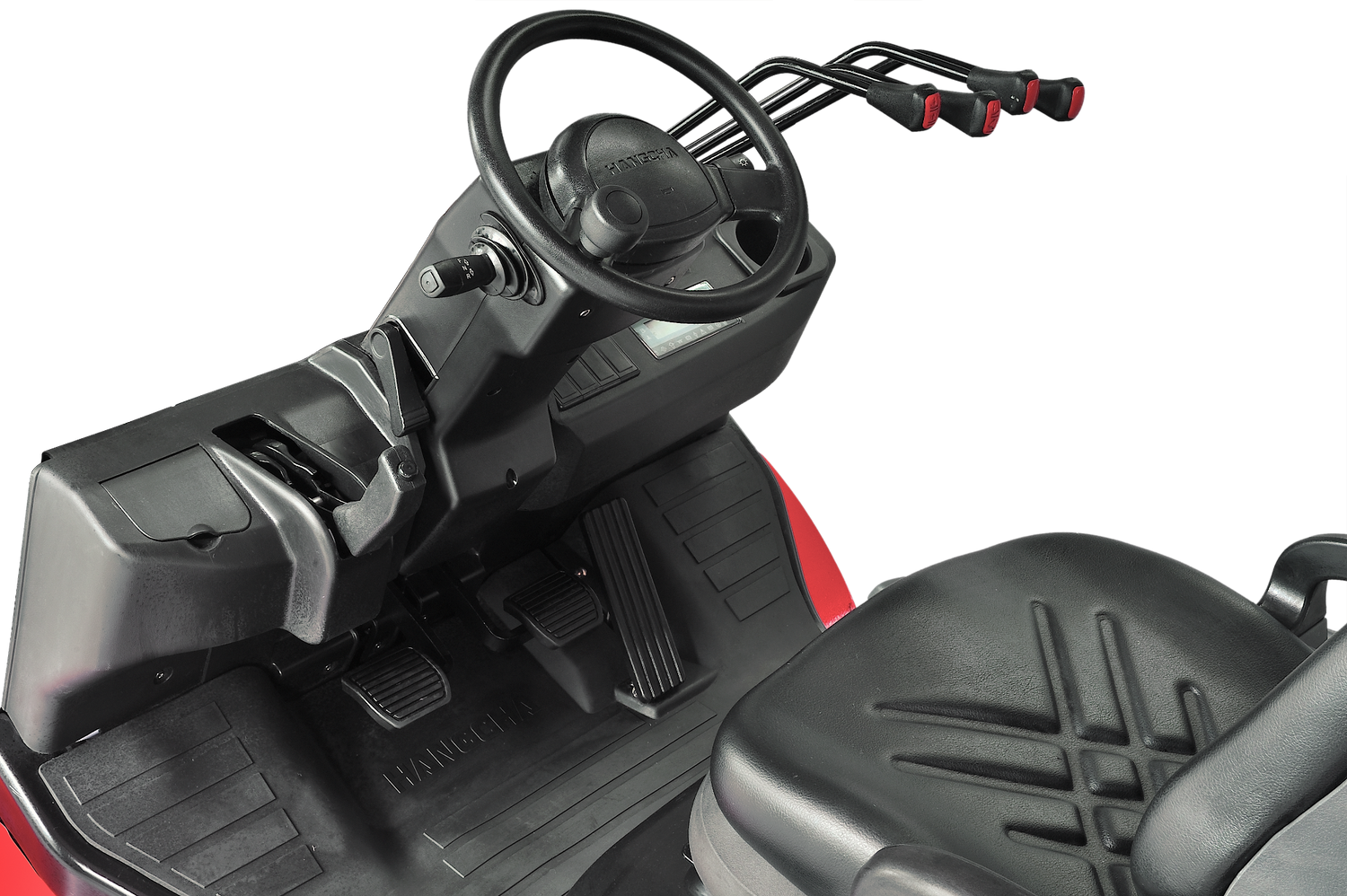

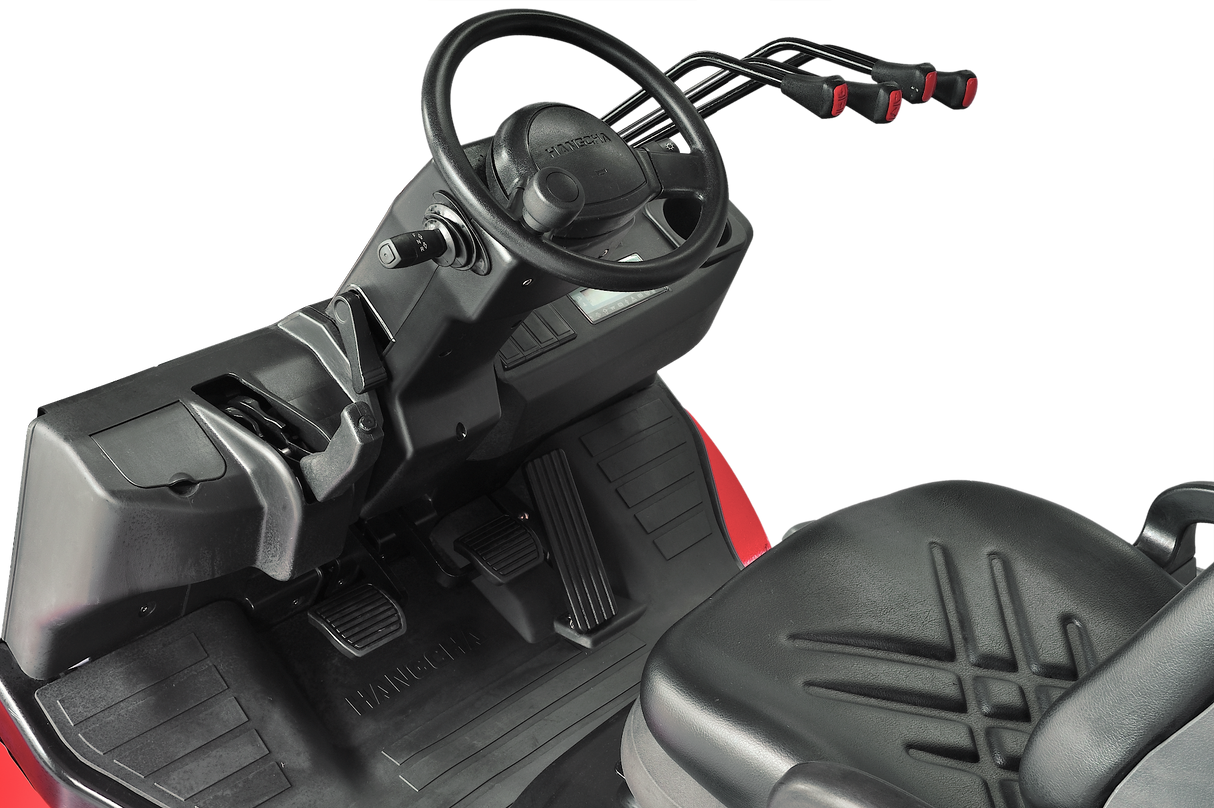

  • Ergonomic Excellence: Small‑diameter, tilt‑adjustable steering wheel, suspended pedals, and automobile‑style control levers minimize operator fatigue.

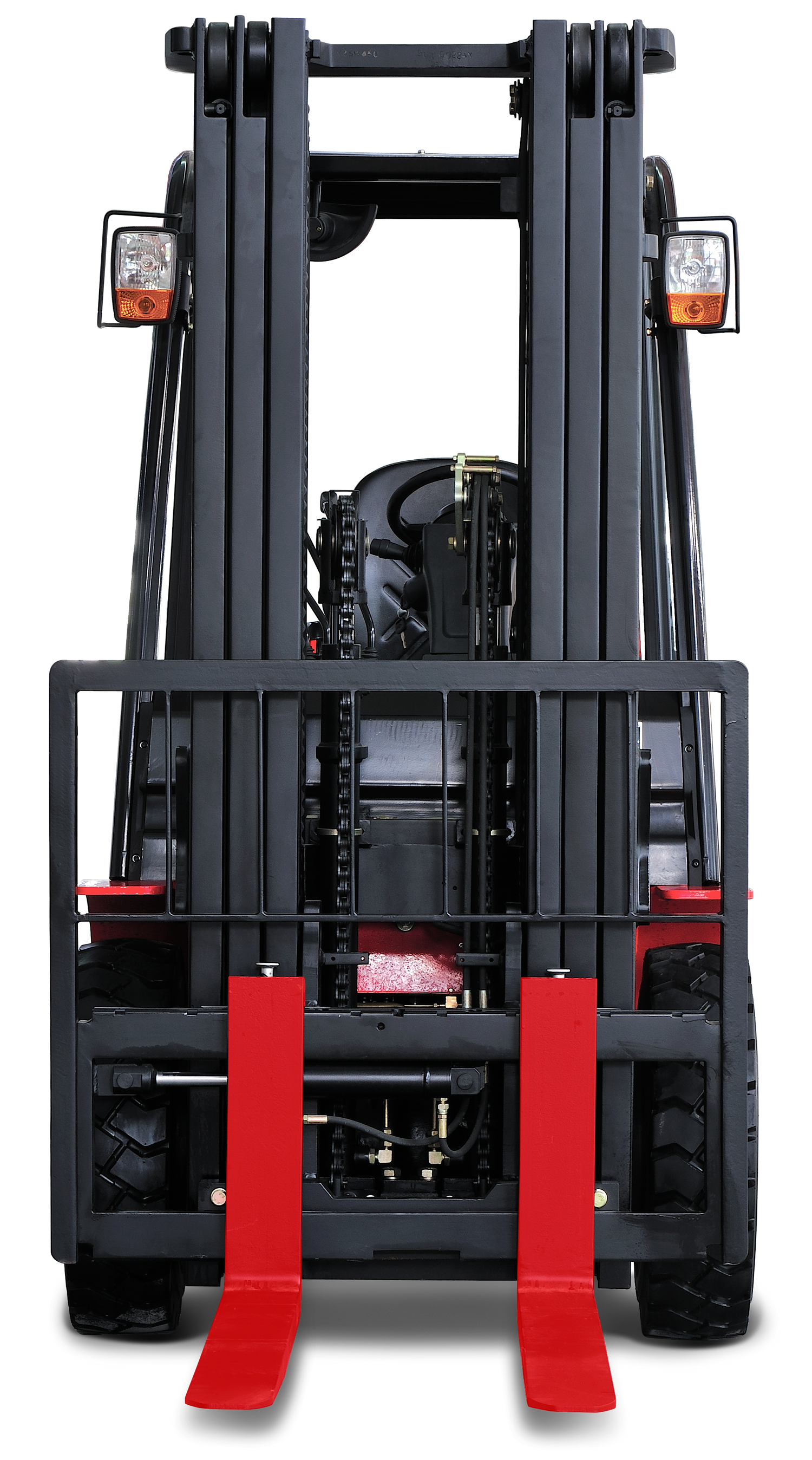

  • Optimal Visibility: Slim‑profile lifting cylinders, double‑cylinder mast and wide‑open sightlines ensure clear views in all directions.
  • Intuitive LCD Meter: Relocated, easy‑to‑read display keeps all operational data at a glance.
  • Quick‑Access Maintenance: Two‑piece floorboard, tool‑free latches and hand‑turn radiator fasteners simplify routine checks and servicing.
  • Enhanced Filtration & Cooling: Stamped tangential‑intake air cleaner with double seal and a high‑capacity radiator with optimized heat channels for reliable performance in heavy use.
  • Dynamic Load‑Sensing Steering: Reduces hydraulic losses and improves maneuverability in tight spaces.
  • Efficient Powertrain: Aluminum‑alloy transmission with full‑floating design and thicker discs delivers superior heat dissipation and 10% lower fuel consumption.
  • LED Work Lights: Energy‑efficient lighting and new‑type reflectors boost illumination while conserving power.
  • Robust Safety Systems: Operator Presence System (OPS), parking‑brake interlock, hood‑damper lock and mast throttling device all contribute to safe, secure operation.

Finance Available

Rent to Own
  • Flexible Path to Ownership: Enjoy the benefits of renting while building equity. With Rent to Own, you can easily transition from rental to ownership, making your investment work for you!
Chattel Mortgage
  • Own Your Equipment, Unlock Your Potential: With our Chattel Mortgage, you can purchase your forklift with flexible repayment options. Take ownership and boost your productivity today!
Fully-Maintained Operating Lease
  • Worry-Free Operations: Enjoy the latest forklifts without the hassle! Our Fully-Maintained Operating Lease covers maintenance and repairs, so you can focus on what you do best.

Optional Accessories

  • Fork Positioning: Adjusts fork width for various pallet sizes, improving load stability.
  • Weight Scale: Provides real‑time weight measurements, ensuring safe load handling and compliance.
  • Rotator: Enables 360° rotation of loads, ideal for dumping bins or repositioning materials.
  • Bale Clamp: Securely handles bales of hay, cotton, tyres or scrap metal, enhancing grip and efficiency.
  • Fork Extensions: Ideal for handling longer pallets and oversized loads.
  • Full Cabin: Provides complete operator protection from the elements, with optional heating or air‑conditioning kits for comfort.
  • Windshield Wipers & Washers: Maintains clear visibility in rain or dust.
  • Safety Lights & Beepers: LED strobes, work‑lights and front/reverse beepers enhance visibility and alert pedestrians in low‑light or noisy environments.
  • Cameras & Proximity Sensors: Reduces blind spots and speeds up safe operation in tight spaces.
  • Auto‑Leveler: Side‑shift for lateral fork movement; auto‑leveler for consistent fork height on uneven ground.
  • LPG Cylinder Tray & Secure Bracket: Factory‑approved mount for seamless, compliant LPG bottle swaps.
  • Decals & Safety Signage: Custom workplace marking kits to promote awareness of pinch‑points, max‑speed zones, etc.
  • Toolbox & Service Kit: On‑board storage for essential tools and grease points, handy for quick checks and minor adjustments.
  • Fire Extinguisher Mount: Keeps a dry‑chemical extinguisher accessible for rapid response to any small fires.
  • Key‑Card / PIN Access: Restricts machine startup to authorised operators, ideal if you share forklifts across shifts.

Application

The CPQYD35-XRW22F is ideal for high-intensity material handling such as distribution centres, manufacturing plants, logistics yards, construction sites and outdoor storage areas. Typical uses include moving heavy pallet loads, stacking in racks or yards, loading/unloading trailers and containers, and on-site material delivery. Its dual-fuel capability and rugged design make it suitable for both indoor and outdoor use.

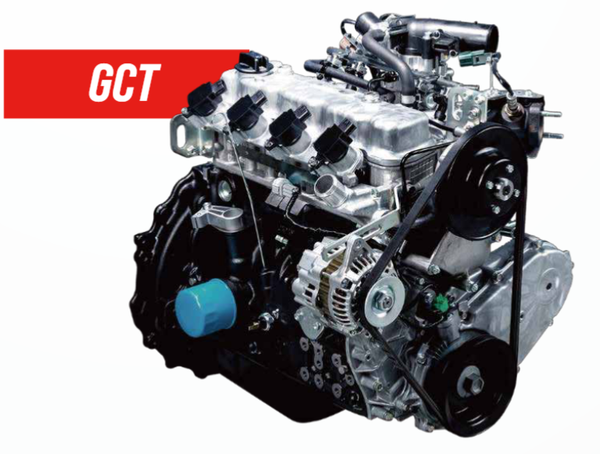

Heavy‑Duty Nissan K25 Engine

At the heart of the Hangcha CPQYD35-XW22F (3.5-tonne dual-fuel) forklift is the globally renowned Nissan K25 2.488 L engine. This powerhouse engine is engineered for top-class output, reliability and fuel flexibility. It delivers around 38 kW of torque-rich performance at roughly 2400 rpm while maintaining exceptional efficiency on both LPG and petrol. With robust construction, an advanced muffler and noise-shield system, and easy-access service points, the K25 engine ensures consistent, low-vibration operation and minimal downtime – shift after shift, in any environment.

Specifications

  • Load Capacity
    3500kg
  • Power Source
    LPG & Petrol
  • Engine
    Nissan K25
  • Mast
    Standard/Container
  • Lift Height
    Up to 6 meters
  • Functions
    3+4 Valves & Pipelines
  • Forks
    1070mm to 2570mm
  • Tyre's
    Solid/Pneumatic/Non-marking
  • Safety
    Speed Reduction Above Free-Lift, OPS, Seat‑belt Interlock
  • Availability
    Generally In Stock
  • Warranty
    5 Years

Dual‑Fuel Flexibility

The Hangcha CPQYD35-XW22F’s advanced dual-fuel system enables seamless LPG/petrol switching on the fly, giving operators flexibility to choose the most cost-effective fuel for their operation. Its EPA/CARB-compliant Nissan K25 engine delivers over 90% energy efficiency and cuts fuel consumption by up to 10%, significantly reducing operating costs and environmental impact.

Ideal for Australian warehouses, distribution centres and outdoor yards, this 3.5-tonne dual-fuel forklift ensures continuous, eco-friendly performance and maximised uptime across a wide variety of material handling applications.

Enhanced Safety Features

Engineered to elevate forklift safety, the CPQYD35-XW22F features an industry-leading Operator Presence System (OPS) that locks out lift, tilt and travel the moment the operator leaves the seat, preventing unintended movement in busy warehouses or outdoor sites. It also includes Speed Reduction Above Free-Lift (SRAFL) to automatically limit travel speed at higher mast elevations for improved stability.

A seat-belt interlock with audible reminder enforces proper restraint usage, and a throttling device on the tilt cylinders prevents uncontrolled mast descent in the event of hydraulic failure. Rounding out its comprehensive safety package are an emergency power-off switch for rapid shutdown, a parking-brake interlock, a robust overhead guard with load backrest, and an ISO 3691-1/AS 2359-compliant design – ensuring safe, secure operation under all working conditions.

All‑Weather Reliability

Engineered as the ultimate all-weather forklift, the CPQYD35-XW22F boasts high ground clearance and a durable stamped, tangential-intake air cleaner with double seals to handle uneven terrain and dusty conditions. A high-capacity muffler and noise-shield system help keep the Nissan K25 engine cool, clean and corrosion-free in wet or extreme-temperature environments.

Built for Australia’s diverse climates – from humid tropics to the arid outback – this rugged 3.5-tonne dual-fuel forklift delivers unbeatable outdoor performance, maintaining productivity and uptime in rain, heat, dust storms or cold weather.

Download

  • 10% Fuel Savings

    Optimised transmission design with full‑floating powertrain and aluminum‑alloy gearing delivers higher drivetrain efficiency, cutting fuel consumption by up to 10%.

  • High‑Speed Handling

    Achieve lift speeds up to 620 mm/s at full load, plus travel speeds of 19.8 km/h (no load) and 19.2 km/h (laden), so you move more pallets in less time.

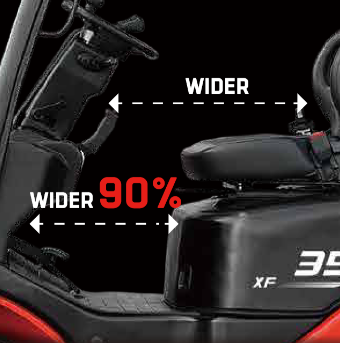

  • Extra Space

    The widened operator compartment and suspended pedal layout provide superior legroom, reducing fatigue during extended shifts.

Frequently Asked Questions

What makes dual fuel forklifts a smart choice for my business?

Dual fuel forklifts switch between LPG and petrol, offering flexibility and lower fuel costs. They emit less than diesel and work indoors or outdoors, making them a versatile, cost-effective option.

How long does a dual fuel forklift run on one fuel load?

A single LPG cylinder or petrol tank lasts a full shift or longer. Quick refueling options like cylinder swaps keep your operations moving with minimal downtime.

What maintenance is needed for a dual fuel forklift?

Dual fuel forklifts require simple checks on fuel systems and engines. LPG reduces wear compared to diesel, keeping maintenance low and reliability high.

Will I need to refuel a dual fuel forklift daily?

Not necessarily, refuel only when needed. Efficient fuel use and fast LPG swaps or petrol fills mean less frequent stops and more productivity.

Can dual fuel forklifts operate in all environments?

Definitely! LPG’s clean emissions suit indoor use with ventilation, while petrol powers outdoor tasks, offering flexibility across warehouses and yards.

How fuel-efficient are dual fuel forklifts?

LPG offers high energy efficiency, and smart engines cut fuel use. Switching fuels optimizes costs, making them economical for daily tasks.

How does the dual fuel system function?

The engine runs on LPG or petrol with an easy switch or auto-shift. This keeps operations smooth and adapts to fuel availability.

What environmental perks come with dual fuel forklifts?

Though not as environmentally friendly as electric forklifts, LPG forklifts cut emissions like particulates and carbon monoxide significantly. Efficient fuel use lowers your carbon footprint, supporting greener operations.
